Doyalaser Flying Fiber Laser Marking Mac...

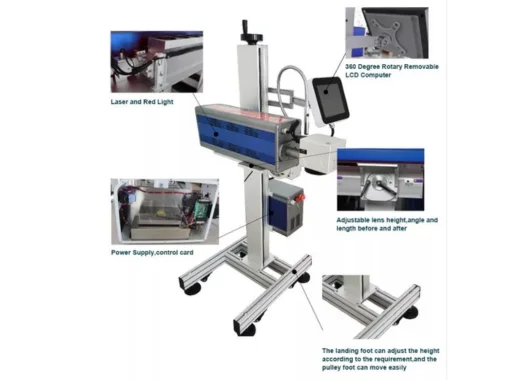

Doyalaser Flying Fiber Laser Marking Machine

The Flying Laser Marking Machine with Conveyor Belt is an industrial laser system designed for online marking directly on a production line. It combines an automatic feeding system with rapid laser marking equipment to achieve high production efficiency and stable quality suitable for multitudinous sequence production. It supports pulsed fiber laser, CO2, and UV laser sources to match different product materials and marking effect requirements. It is widely used for high marking precision in industries like food, medicine, and cables.
3W
5W
20W
30W
Category: Laser Marker
Brand: DOYA

Doyalaser Flying Fiber Laser Marking Machine

The Doyalaser Flying Fiber Laser Marking Machine is designed for high-speed marking on products moving through production lines. It combines fiber laser technology with continuous production marking requirements.

This Fiber Laser Marking Machine is suitable for serial numbers, product codes, barcodes, logos and other permanent identification applications. It is designed for manufacturing environments where production speed and marking accuracy are important.

Key Features of Doyalaser Flying Fiber Laser Marking Machine

  • Flying Laser Marking
    Designed to mark products while they move through the production line.
  • Fiber Laser Technology
    Suitable for precise and durable marking on compatible materials.
  • High-Speed Production
    Supports continuous industrial marking applications.
  • Permanent Product Identification
    Creates durable marks for product traceability.
  • Barcode & QR Code Marking
    Suitable for identification and tracking applications.
  • Non-Contact Processing
    Marks products without physical contact.
  • Industrial Applications
    Suitable for electronics, automotive components and manufacturing.

Technical Specification



Specification

Detail

ModelDMF-3 W / 5 W / 20 W / 30 W
Laser Power Options3 W, 5 W, 20 W, 30 W
Laser Wavelength1064 nm (Typical Fiber Laser Wavelength)
Beam Quality (MΒ²)< 2
Laser Pulse Frequency20 KHz – 200 KHz
Marking Area110 mm Γ— 110 mm / 150 mm Γ— 150 mm (Optional)
Max. Marking Speed7000 mm/s
Repeated Accuracy< 0.01 mm
Minimum Line Width0.001 mm
Marking Depth≀ 0.5 mm
Cooling MethodAir Cooling
Laser Module Life100,000 hours
Process MaterialAll metals and some non-metal materials
Supported FormatsPLT, BMP, DXF, JPG, TIF, AI, etc.
Power Supply110 V / 220 V (Β±10%), 50 KHz / 60 KHz
